RSBL Alumina Silica Blanket

  Brooke Hamling   Sep 07, 2018     Comments Off on RSBL Alumina Silica Blanket

General Info

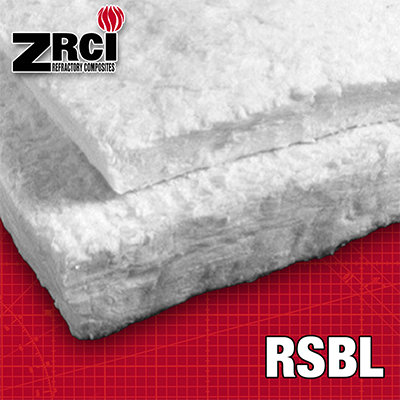

 ZRCI Alumina-Silica Blanket Types RSBL-2300 and RSBL-2600 are mechanically-needled ceramic-fiber blankets that provide effective solutions to a variety of thermal management problems. RSBL-2300 and RSBL-2600 blankets exhibits good strength and handleability. They are low density with good chemical stability. RSBL-2300 and RSBL-2600 provide low thermal conductivity in numerous high-temperature laboratory and aggressive industrial environments. They have low shot content and are easily cut with scissors or knife. They are available in a wide range of density and thickness combinations.

They are available in two temperature ratings:

RSBL-2300 is made from spun Al2O3 -SiO2 refractory ceramic fibers (RCF) and is capable of long service life in applications with temperatures to 1260⁰C (2300⁰F).

RSBL-2600 is made from spun Al2O3 -SiO2 -ZrO2 refractory ceramic fibers (RCF) and exhibits extended service life in applications with temperatures to 1427⁰C (2600⁰F).

Types RSBL-2300 & RSBL-2600 Alumina Silica Blankets are ideal for use as furnace insulation in sintering, heat treating and chemical thermal process systems.

Properties

SUGGESTED APPLICATIONS

  • High temperature furnace and kiln linings.
  • Boiler insulations.
  • High temperature gaskets and seals.
  • Pipe and duct insulation.
  • Backup thermal insulation in furnaces, solid oxide fuel cells and thermal process systems operating to high temperatures.
  • General high-temperature furnace repair.
  • Investment casting mold wrappings.
  • Soaking pit seals.
  • Glass furnace crown insulation.

Composition

TYPE RSBL-2300 RSBL-2600
Nominal Composition, wt%
Al2O3 45 30
SiO2 55 54
ZrO₂ 0 16
Other Oxides <0.5 <0.1
Density, gm/cc(pcf) 96.11 (6) 128.5(8)
Max. Use Temp.*, °C(°F) 1260(2300) 1427(2600)
Fiber Diameter, microns 2.5-3.5 3.5
Thermal Conductivity, W/m°K(BTU/hr. ft² °F/in)
260°C(500°F) 0.06(0.45) 0.05(0.39)
               538°C(1000°F) 0.13(0.94) 0.11(0.78)
                816°C(1500°F) 0.24(1.70) 0.18(1.13)
                1093°C(2000°F) 0.40(2.80) 0.29(2.02)
Linear Shrinkage, %
                 1260°C(2300°F) 3.3 2.1
                 1426°C(2600°F) 5.1
Fiber Specific Gravity, g/cc (pcf) 2.73(170.4) 2.73(170.4)
Specific Heat, J/kg ⁰K (BTU/lb ⁰F)

1093⁰C (2000⁰F)

1130(0.27) 1130 (0.27)

* Maximum use temperature is dependent on variables such as stresses, both thermal and mechanical, and the chemical environment that the material experiences.

** Properties expressed parallel to thickness.

^ Properties expressed perpendicular to thickness.

Instructions

PDF

Download the RSBL Alumina Silica Blanket PDF File

SDS (in PDF format)

Download 1st PDF File

Download 2nd PDF File

Other Information

NS70 RSBL-2300-6, 24″ x 25′ x 1/2″T
NS71 RSBL-2300-6, 48″ x 25′ x 1/2″T
NS72 RSBL-2300-6, 24″ x 25′ x 1″T
NS73 RSBL-2300-6, 48″ x 25′ x 1″T
NS74 RSBL-2300-6, 24″ x 12.5′ x 1.5″T
NS75 RSBL-2300-6, 48″ x 25′ x 1.5″T
NS76 RSBL-2300-6, 24″ x 12.5′ x 2″T
NS77 RSBL-2300-6, 48″ x 12.5′ x 2″T
NS80 RSBL-2300-8, 24″ x 25′ x 1/2″T
NS81 RSBL-2300-8, 48″ x 25′ x 1/2″T
NS82 RSBL-2300-8, 24″ x 25′ x 1″T
NS83 RSBL-2300-8, 48″ x 25′ x 1″T
NS84 RSBL-2300-8, 24″ x 12.5′ x 1.5″T
NS85 RSBL-2300-8, 48″ x 12.5′ x 1.5″T
NS86 RSBL-2300-8, 24″ x 12.5′ x 2″T
NS87 RSBL-2300-8, 48″ x 12.5′ x 2″T
NS90 RSBL-2600-8, 24″ x 25′ x 1/2″T
NS91 RSBL-2600-8, 24″ x 25′ x 1″T
NS92 RSBL-2600-8, 24″ x 12.5′ x 1.5″T
NS93 RSBL-2600-8, 24″ x 12.5′ x 2″T
